MATERIALS AVAILABLE
18.8 STAINLESS STEEL / 316 STAINLESS STEEL / STEEL ZINC

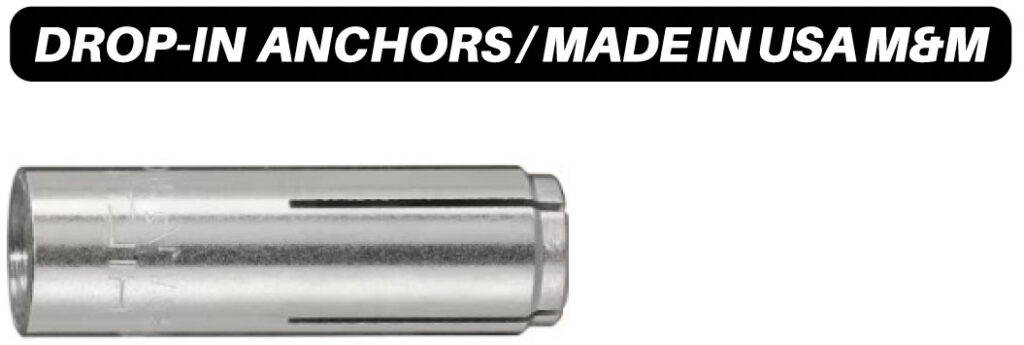

ULTRA FASTENERS USA DROP-IN ANCHORS OFFER SHALLOW DEPTH INSTALLATION WITH HIGH PERFORMANCE ANCHOR IS INSTALLED FLUSH WITH BASE MATERIAL. SETTING TOOL IS INCLUDED WITH THE ANCHORS.
** ADD THE FOLLOWING TO THE END OF THE PART NUMBER TO DENOTE MATERIAL:
18.8 (STAINLESS STEEL) / 316 (STAINLESS STEEL) / Z (STEEL ZINC)
(EXAMPLE: 250XDAD316 = 1/4-20 DROP-IN ANCHOR USA/DOMESTIC 18.8 STAINLESS STEEL
| PART NO. | SIZE | LENGTH | HOLE SIZE | THREAD DEPTH |
| 250XDAD | 1/4″ | 1″ | 3/8″ | 1/2″ |
| 375XDAD | 3/8″ | 1-9/16″ | 1/2″ | 5/8″ |
| 500XDAD | 1/2″ | 2″ | 5/8″ | 3/4″ |
| 625XDAD | 5/8″ | 2-9/16″ | 7/8″ | 1″ |
| 750XDAD | 3/4″ | 3-3/16″ | 1″ | 1-1/4″ |
